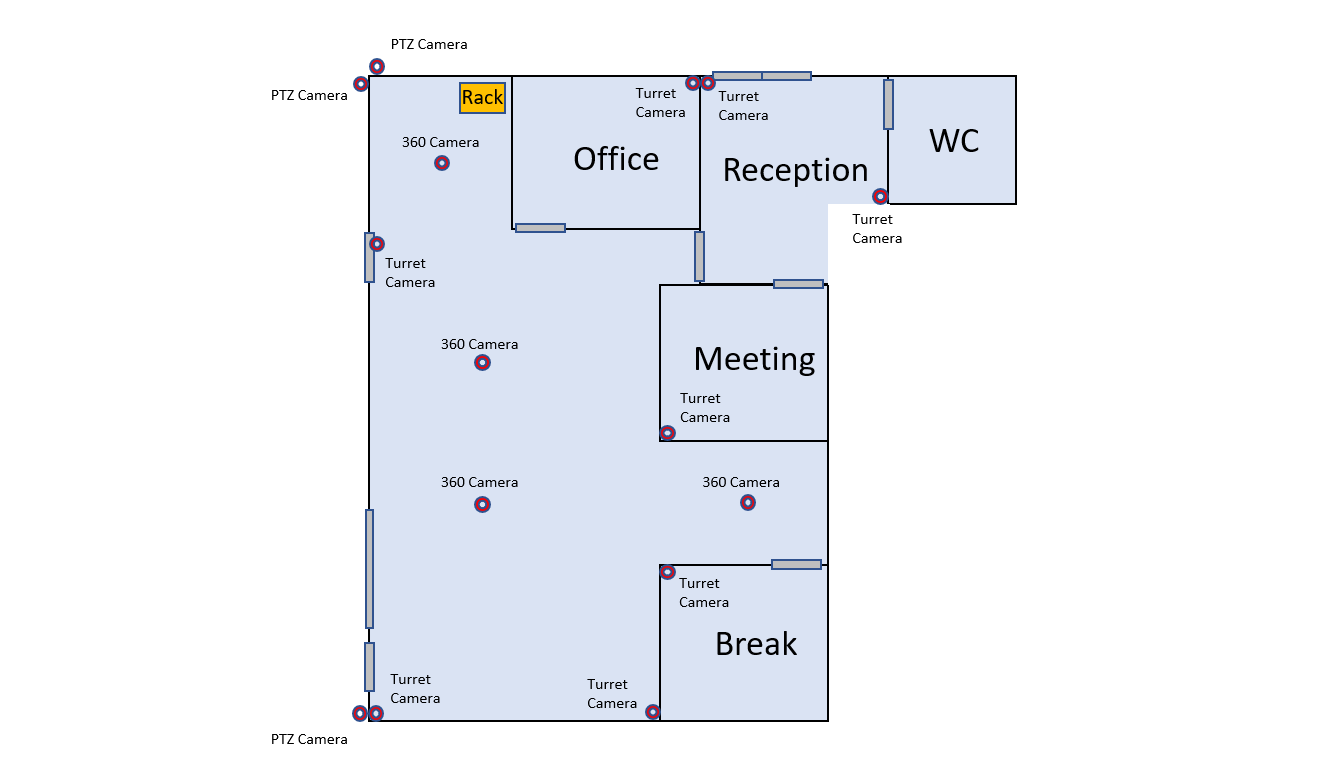

Proposed Layout

Covering office spaces, detailed production space viewing, PTZ enabled exterior vantage points.

  • Motorized outdoor controls with excellent AI facial, vehicle, license plate, and person recognition with motion events and enhanced IR for night-time usage.
  • AI and motion features extended to interior camearas.
  • Turret and 360 cameras selected for greater, detailed coverage of the production floor.
  • Surveillance functions without the need for internet, stored locally with installed dual 24TB HDD redundant footage.
  • Rack mounted 1500VA for uninterrupted power to surveillance, network equipment, and internet modem during a power outage*

Cameras

Exterior PTZ for long‑range coverage, 360° pendants for open areas, and compact 4K turrets for interiors.

×3
PTZ camera
Model: G6 PTZ
IP66 / IK04
  • 4K dual‑lens, 10× hybrid zoom, low‑latency pan/tilt.
  • Smart detections: faces, plates, people, vehicles, animals.
  • Pan 350° / Tilt 100°, ~30 m IR, two‑way audio.
×4
360 pendant camera
Model: AI 360
Pendant / surface
  • 360° fisheye 2K (1920×1920) with dewarping.
  • Smart detections for people/vehicles/animals.
  • IR night vision, integrated mic & speaker.
×8
4K turret camera
Model: G6 Turret
Interior / semi‑exposed
  • 4K (3864×2160) wide FOV with onboard mic.
  • Smart detections including face & plate support.
  • ~30 m IR, PoE, 3‑axis mount for corners/walls.

Core & Power (Condensed)

×1
Gateway/NVR
Gateway / Recorder
  • RAID 1: 2× 24TB (mirrored) — ~24 days retention.
  • 10G SFP+ & 2.5 GbE WAN, advanced firewall & VPN.
  • 1U rackmount with touchscreen, quiet operation.
×2
16‑port PoE switch
16‑Port PoE Switch
  • 12× PoE+ & 4× 2.5GbE PoE++, 2× 10G SFP+ uplinks.
  • 180 W PoE budget; L3, IGMP, 802.1X, ACLs.
  • Compact 1U with status display.
×1
Managed PDU
Managed Power Distribution
  • 16 controllable AC outlets + 4× USB‑C.
  • Ethernet‑managed; remote reboot & power auditing.
  • Keeps rack tidy and recoverable.

Installation & Cleanup

Network rack re‑organization
  • Re‑rack, label, and tidy cabling for airflow and serviceability.
  • Velcro & cable‑bar management; no loose cabling inside rack.
  • New rack-mounted 1500VA UPS inside network rack.
Conduit installation for camera/data runs
  • EMT routing along trusses with proper junction boxes and supports.
  • Plenum‑rated CAT6 where required; bushings & strain relief.
  • No exposed wiring.

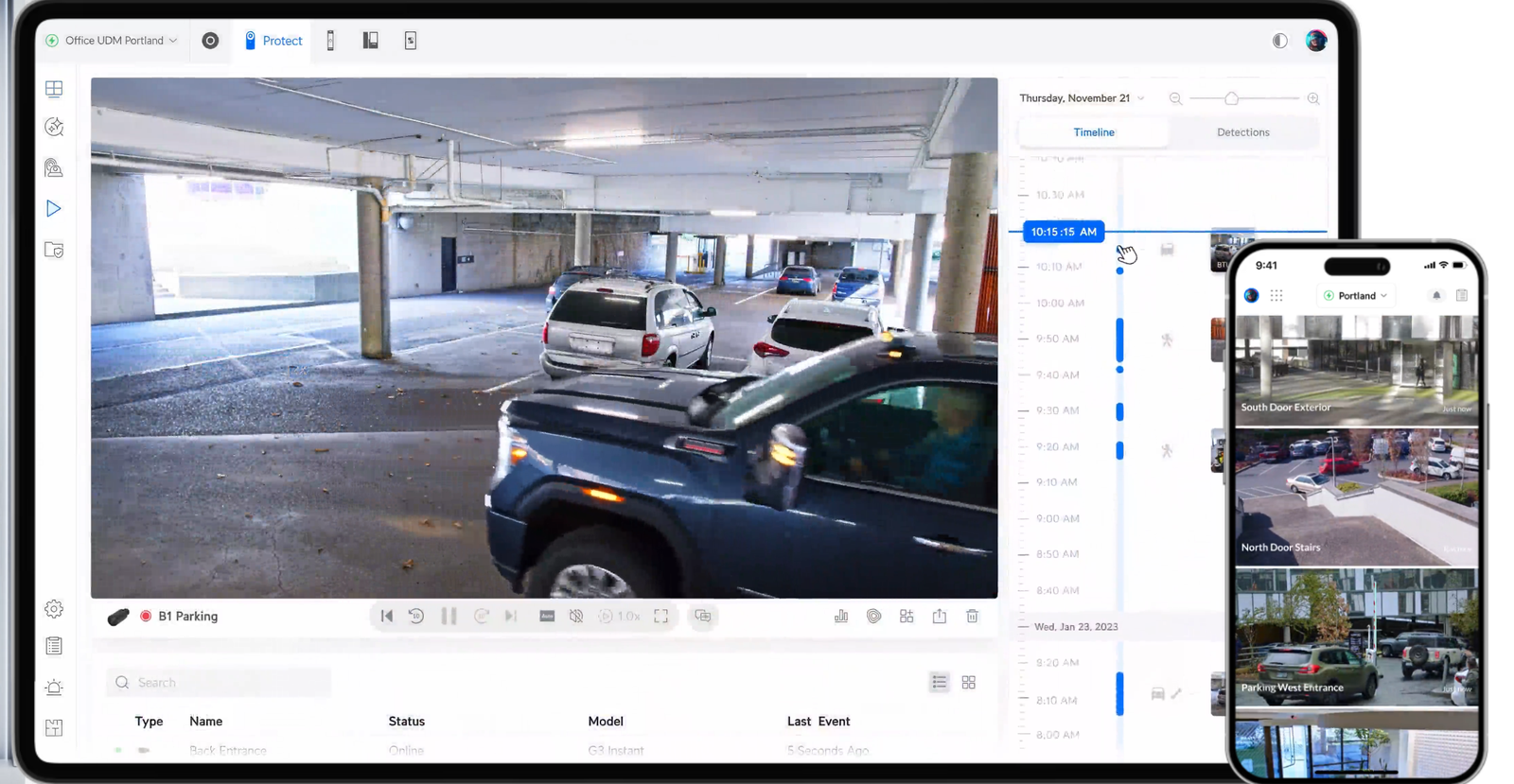

How the software works

Desktop and mobile views with live preview, timelines, and smart event scrubbing.

  • Review events by person/face/vehicle with quick jump markers.
  • Easy "line crossing" and "motion zones" setup for granular push-alerts and optional email notifications.
  • Instant dewarping for 360° views; multi‑camera layouts.
  • Secure remote access from phone or workstation.
Total Quote: $13,400
